Horizontal

  • UV 300 GPM HT

    5.00 out of 5

    UV Ultraviolet Flow Rate: 300 GPM
    No. of UV Lamp 6*120W
    UV Lamp USA Light Source
    3″ flanch inlet and outlet
    Port Product Size:1200*219mm
    Control box above the UVView Details

    Heavy duty stainless steel pressure vessel
    Heavy duty quartz sleeve
    High output, hard glass UV lamps for maximum efficiency
    CE ballast with lamp failure indicator and warning buzzer
    Ceramic end cap of UV lamp
    30000mic. watt sec/cm2 at energy of 253.7nm wave length
    Working pressure 125PSI
    Low power consumption
    9000 hours lamp life (approx. 1 year of use)
    110/220V, 50HZ/60HZ
    Vertical or Horizontal installation

  • UV 400 GPM-HT

    5.00 out of 5

    UV Ultraviolet Flow Rate: 400 GPM
    No. of UV Lamp 8*120W
    UV Lamp USA Light Source
    3″ flanch inlet and outlet
    Port Product Size:1200*219mm
    Control box above the UVView Details

    Heavy duty stainless steel pressure vessel
    Heavy duty quartz sleeve
    High output, hard glass UV lamps for maximum efficiency
    CE ballast with lamp failure indicator and warning buzzer
    Ceramic end cap of UV lamp
    30000mic. watt sec/cm2 at energy of 253.7nm wave length
    Working pressure 125PSI
    Low power consumption
    9000 hours lamp life (approx. 1 year of use)
    110/220V, 50HZ/60HZ
    Vertical or Horizontal installation

  • UV 500 GPM-HT

    5.00 out of 5

    UV Ultraviolet Flow Rate: 500 GPM
    No. of UV Lamp 10*120W
    UV Lamp USA Light Source
    3″ flanch inlet and outlet
    Port Product Size:1200*219mm
    Control box above the UView Details

    Heavy duty stainless steel pressure vessel
    Heavy duty quartz sleeve
    High output, hard glass UV lamps for maximum efficiency
    CE ballast with lamp failure indicator and warning buzzer
    Ceramic end cap of UV lamp
    30000mic. watt sec/cm2 at energy of 253.7nm wave length
    Working pressure 125PSI
    Low power consumption
    9000 hours lamp life (approx. 1 year of use)
    110/220V, 50HZ/60HZ
    Vertical or Horizontal installation

  • UV 700 GPM – HTM

    5.00 out of 5

    UV Ultraviolet Flow Rate: 700 GPM
    No. of UV Lamp 14*120W
    UV Lamp USA Light Source
    3″ or 3.5” flanch inlet and outlet
    Port Product Size:1200*219mm
    Control box aView Details

    Heavy duty stainless steel pressure vessel
    Heavy duty quartz sleeve
    High output, hard glass UV lamps for maximum efficiency
    CE ballast with lamp failure indicator and warning buzzer
    Ceramic end cap of UV lamp
    30000mic. watt sec/cm2 at energy of 253.7nm wave length
    Working pressure 125PSI
    Low power consumption
    9000 hours lamp life (approx. 1 year of use)
    110/220V, 50HZ/60HZ
    Vertical or Horizontal installation

  • UV-150 GPM-HT

    0 out of 5

    UV Ultraviolet Flow Rate: 150GPM
    No.of UV Lamp 3*120W
    UV Lamp USA Light Source
    3″ flange inlet and outlet port
    Product Size:1200*133mm
    Control box above the UVView Details

    Heavy duty stainless steel pressure vessel
    Heavy duty quartz sleeve
    High output, hard glass UV lamps for maximum efficiency
    CE ballast with lamp failure indicator and warning buzzer
    Ceramic end cap of UV lamp
    30000mic. watt sec/cm2 at energy of 253.7nm wave length
    Working pressure 125PSI
    Low power consumption
    9000 hours lamp life (approx. 1 year of use)
    110/220V, 50HZ/60HZ
    Vertical or Horizontal installation

  • UV-200 GPM-HT

    0 out of 5

    UV Ultraviolet Flow Rate: 200-GPM
    No. of UV Lamp 4*120W
    UV Lamp USA Light source
    3″ flange inlet and outlet
    Port Product Size:1200*168mm
    Control box above the UVView Details

    AQUA FLOW UV STANDARD FEATURES
    Heavy duty stainless steel pressure vessel
    Heavy duty quartz sleeve
    High output, hard glass UV lamps for maximum efficiency
    CE ballast with lamp failure indicator and warning buzzer
    Ceramic end cap of UV lamp
    30000mic. watt sec/cm2 at energy of 253.7nm wave length
    Working pressure 125PSI
    Low power consumption
    9000 hours lamp life (approx. 1 year of use)
    110/220V, 50HZ/60HZ
    Vertical or Horizontal installation

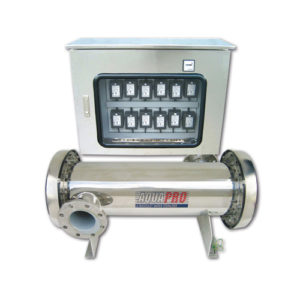

  • UV120GPM-HTM

    0 out of 5

    Heavy duty stainless steel pressure vessel

    Heavy duty quartz sleeve

    High output, hard glass UV lamps for maximum efficiency

    CE ballast with lamp failure indicator and warning bView Details

    100GPM &120GPM STANDARD SPECIFICATION
    Dimensionl LxWxD (mm) 1500X1100X560
    Electrical Volts 110/220V / 50/60HZ
    Flow Rate 100GPM, 120GPM
    In/out Port 3″ Flange
    UV Lamp (PC) 10, 12
    Quartz Sleeve (PC) 10, 12
    Lamp Failure Device Yes
    Ambient Temperature 2-40oC(36-104oF)
    Lamp Watts 40Wx10, x12
    Chamber SS316, SS316L
    Accumulated Timer Yes
    UV Light monitor Yes
    Separate Power Box Yes
    Leakage Circuit Breaker Yes
    No Fuse Breaker Yes
    Fan Yes

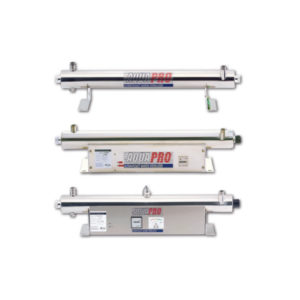

  • UV12GPM-H / HT / HTM

    0 out of 5
    • Dimension LxWxD (mm)   900X170X89 (UV12GPM-H) 900X190X160 (UV12GPM-HT, HTM) Electrical Volts  110/220V / 50/60HZ  Flow Rate  12GPM  In/out Port  3/4″  UV Lamp (PC) View Details

    Heavy duty stainless steel pressure vessel
    Heavy Duty Quartz Sleeve
    High Output, hard glass UV lamps
    9000 hours lamp life
    Economical
    Vertical or Horizontal installation
    Kills bacteria and viruses
    Chemical free
    Easy to install and maintain

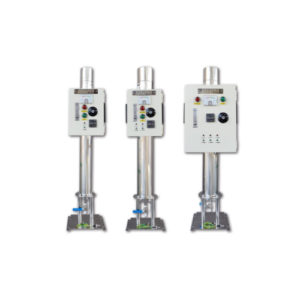

  • UV12GPM-VTM / UV24GPM-VTM / UV36GPM-VTM

    0 out of 5

    AQUAPRO UV STANDARD FEATURES

    Heavy duty stainless steel pressure vessel

    Heavy duty quartz sleeve

    High output, hard glass UV lamps for maximum efficiency

    CE ballast with View Details

    UV12GPM STANDARD SPECIFICATION

    Dimension LxWxD (mm) 900X170X89 (UV12GPM-H)
    900X190X160
    (UV12GPM-HT, HTM)
    Electrical Volts 110/220V / 50/60HZ
    Flow Rate 12GPM
    In/out Port 3/4″
    UV Lamp (PC) 1
    Quartz Sleeve (PC) 1
    Lamp Failure Device Yes
    Ambient Temperature 2-40oC(36-104oF)
    Lamp Watts 40W
    Chamber SS304
    Accumulated Timer UV12GPM-HT, HTM
    UV Light monitor UV12GPM-HTM

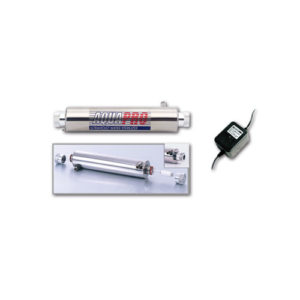

  • UV1GPM

    0 out of 5
    • Dimension LxWxD (mm) 278X80X80 Electrical Volts 110/220V / 50/60HZ Flow Rate 2GPM In/out Port 1/4″ UV Lamp (PC) 1 Quartz Sleeve (PC) 1 Lamp Failure Device YES Ambient TempeView Details

    Heavy duty stainless steel pressure vessel.
    . Heavy duty quartz sleeve.
    . High output, hard glass UV lamps for maxi-
    mum efficiency.
    . Visual indicator & alarm for lamp failure.
    . Ceramic end cap of UV lamp.
    .30000mic. Watt sec/c at energy fo 253.7
    nm wave length.
    .Working Pressure 125PSI.
    . Low power consumption.
    .9000 hours lamp life (approx. 1 year of use).
    . Automatic controller to shut-off water supply
    when lamp failure occurs. (Solenoid valve
    will be required)
    .120VAC or 240VAC
    . Vertical or Horizontal installation.

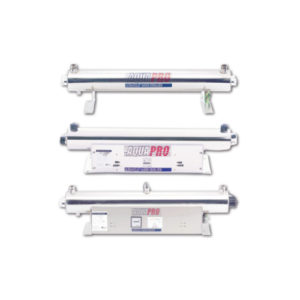

  • UV24GPM-H / HT / HTM

    0 out of 5

    AQUAPRO UV STANDARD FEATURES

    Heavy duty stainless steel pressure vessel

    Heavy duty quartz sleeve

    High output, hard glass UV lamps for maximum efficiency

    CE ballast with View Details

    UV24GPM STANDARD SPECIFICATION
    Dimension LxWxD (mm) 900X190X160 (UV24GPM-H)
    900X240X160
    (UV24GPM-HT, HTM)
    Electrical Volts 110/220V / 50/60HZ
    Flow Rate 24GPM
    In/out Port 1″
    UV Lamp (PC) 2
    Quartz Sleeve (PC) 2
    Lamp Failure Device Yes
    Ambient Temperature 2-40oC(36-104oF)
    Lamp Watts 40Wx2
    Chamber SS304
    Accumulated Timer UV24GPM-HT, HTM
    UV Light monitor UV24GPM-HTM

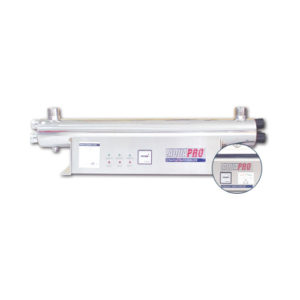

  • UV36GPM-HT / UV36GPM-HTM

    0 out of 5

    AQUAPRO UV STANDARD FEATURES

    Heavy duty stainless steel pressure vessel

    Heavy duty quartz sleeve

    High output, hard glass UV lamps for maximum efficiency

    CE ballast with View Details

    UV36GPM STANDARD SPECIFICATION
    Dimension LxWxD (mm) 980X230X280
    Electrical Volts 110/220V / 50/60HZ
    Flow Rate 36GPM
    In/out Port 1 1/2″
    UV Lamp (PC) 3
    Quartz Sleeve (PC) 3
    Lamp Failure Device Yes
    Ambient Temperature 2-40oC(36-104oF)
    Lamp Watts 40Wx3
    Chamber SS304
    Accumulated Timer 36GPM-HT, HTM
    UV Light monitor 36GPM-HTM
